Durr Dental

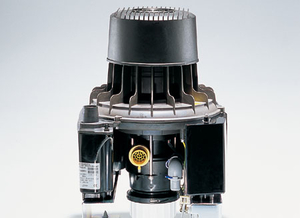

VSA300S
An update to the VSA300, the new pump has increased power and an integrated 24V low voltage control system which is also capable of feeding the supply for the spittoon valve and place isolation valve. The VSA300S has a composite (carbon fibre) impellor and is light weight and fast starting.
Technical Data VSA 300s
Voltage 230 V 1~
Frequency 50 - 60 Hz
Current consumption 2,9 - 3,7 A
Electrical power 0,58 - 0,8 kW
Vacuum (mbar) 180
Rotational speed 2.850 (rpm)
Max. fluid throughflow rate 4 l/min
Duty cycle 100% (S1)

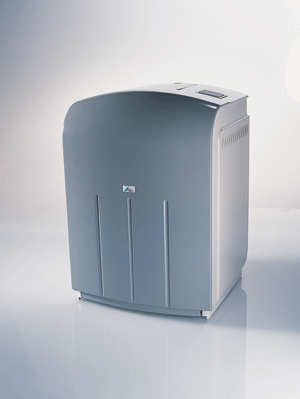

Dimension H 37 x W 31 x D 31 cm, with housing H 51 x W 36 x D 36 cm
Noise level 63 - 65 dB(A), with housing 54 - 56 dB(A)
Weight 12,5 kg, with housing 20 kg
|
